Failover & Recovery Testing

Now the payoff: we kill the primary and watch the cluster heal itself with no human intervention.

Before: note the current primary

PGPASSWORD=ChangeMe_Postgres psql -h pg-haproxy -p 5432 -U postgres \
  -c "SELECT inet_server_addr();"
# -> 10.100.100.104  (pg-sv01)

Trigger an unplanned failover

Simulate a real server death — hard-power-off pg-sv01 (pull the plug, not a graceful shutdown). On a hypervisor that's a force-stop; on a cloud VM, a stop/power-off.

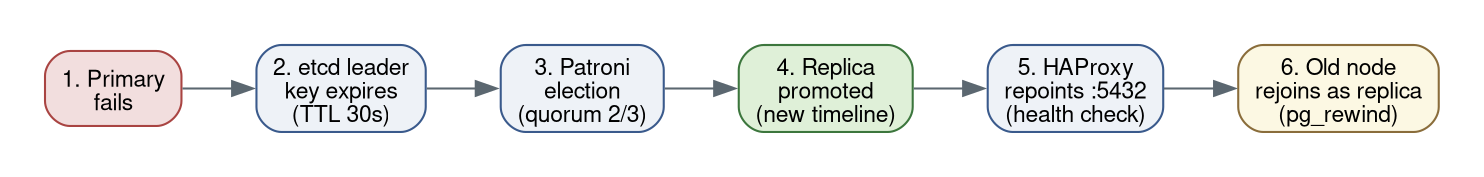

What happens, in order:

1. pg-sv01 stops renewing its leader lock in etcd.
2. After the ttl (30 s) the lock expires.
3. The surviving Patronis hold quorum (2 of 3) and run an election.
4. A replica is promoted to primary and PostgreSQL advances to a new timeline.
5. HAProxy's health checks see the old node fail /primary and the new node start answering 200 — it repoints the write port automatically.

Because etcd is co-located here, killing one DB node also removes one etcd member — but 2 of 3 is still a quorum, so the DCS keeps working.

After: confirm automatic recovery

Within roughly 30–45 seconds:

# From a surviving node:
sudo patronictl -c /etc/patroni/patroni.yml list

+ Cluster: pg-cluster --------+---------+-----------+----+
| Member  | Host           | Role    | State     | TL |
+---------+----------------+---------+-----------+----+
| pg-sv02 | 10.100.100.105 | Leader  | running   |  2 |   <- promoted, new timeline
| pg-sv03 | 10.100.100.106 | Replica | streaming |  2 |
+---------+----------------+---------+-----------+----+

The write endpoint now points at the new primary — and it is fully writable:

PGPASSWORD=ChangeMe_Postgres psql -h pg-haproxy -p 5432 -U postgres -c \
  "CREATE TABLE IF NOT EXISTS failover_test(id serial, ts timestamptz default now());
   INSERT INTO failover_test DEFAULT VALUES RETURNING *;"
# -> succeeds against 10.100.100.105

Your application, pointed at pg-haproxy:5432 the whole time, never needed to change anything.

Recovery: the old primary rejoins

Power pg-sv01 back on. Patroni starts automatically (it's enabled) and notices a newer timeline exists, so it rejoins as a replica using pg_rewind instead of a slow full re-clone (this works because we set wal_log_hints: "on"):

sudo patronictl -c /etc/patroni/patroni.yml list

+ Cluster: pg-cluster --------+---------+-----------+----+
| Member  | Host           | Role    | State     | TL |
+---------+----------------+---------+-----------+----+
| pg-sv01 | 10.100.100.104 | Replica | streaming |  2 |   <- rejoined via pg_rewind
| pg-sv02 | 10.100.100.105 | Leader  | running   |  2 |
| pg-sv03 | 10.100.100.106 | Replica | streaming |  2 |
+---------+----------------+---------+-----------+----+

Three members again, all on timeline 2, zero lag, and the row you inserted is present on every node. That is a self-healing PostgreSQL cluster: automatic failover and automatic recovery.

Optional: planned switchover

For maintenance (e.g. patching the primary), do a controlled role change with no data loss:

sudo patronictl -c /etc/patroni/patroni.yml switchover

It asks which member to promote and switches cleanly.
